Animation

The Animation module has been create to simplify animation using javascript.


The module present a simple function animate to help calculating your animation position (More details bellow), moreover it include two other under modules: Flip and Animated gradient.

Module Details

Variables (Members):


Name

Type

Default Value

Description

animationClass
  • null
  • null

Class holding the main classes of the modules.

animationFunctions
  • null
  • null

Class holding the two main functions of the module (see the functions details below).



Enumeration:


Name

List

Description

Curves
  • LINEAR: 0
  • EASE_IN_OUT: 1
  • BUMP_EASE_IN_OUT: 2

Enumerator used to defined which kind of animation you want (it will pick one of the functions above - see functions description for the difference between curves).



Functions:


Name

Arguments

Return

Description

Animate
  • Curves: Type - The type of animation curve you want.
  • String: Name - The name of the animation (for debug) can be null (no debug)
  • Integer: Duration - Total time for the animation in millisecond.
  • Integer: FrameRate - animation frame rate in FPSeconds.
  • Function: AnimationFunction - callback animation (see description for more details).
  • Class: ExtraData - Extra data need by the callback function, can be null or not specified.
  • Class: CurveDetails - Extra information curves need (See curves details for more information).
  • Float: StartAt - Used to force the of the animation at specific % (must be between 0-100) , can be null or not specified.

VOID

Animate will choose one of the AnimationFunctions based on your selection.

The callback function has to take two arguments:

  • Integer: percent status of the animation (0-100).
  • Integer: X in function of percent above (0-100).


If needed, the callback function can take a third argument which is extra data you need to transfer to the function (ExtraData).


Note that the callback function no longer belong to the calling class when executed.

CreateFlip
  • None

Flip

Function is used to create a new Flip class.

AddGradient
  • String: ID - The DOM id of the targeted section.

AnimatedGradient

Create and Initialize a new AnimatedGradient Class.



Functions Details

LinearAnimation:


Arguments

  • Integer: MaxTimeInMS - Duration of the animation in milliseconds.
  • Integer: FrameRate - Animation frame rate in FPSeconds.
  • Function: Function - Call back animation with two or 3 arguments (Percents, X, ExtraData).
  • String: INFO_NAME - Name of the animation (debug purpose).
  • Boolean: IsOtherArguments - Define if callback function need extra data.
  • Class: FUNCTION_NEEDED_INFO - Extra data needed by function.
  • Float: StartAt - Used to force the of the animation at specific % (must be between 0-100) , can be null or not specified.



Description


Like other animation function LinearAnimation  will calculate x position based on a advancement and sent back the info trough a callback function with arguments (Percent, X). The callback function  just need to place items on there position based on X value.

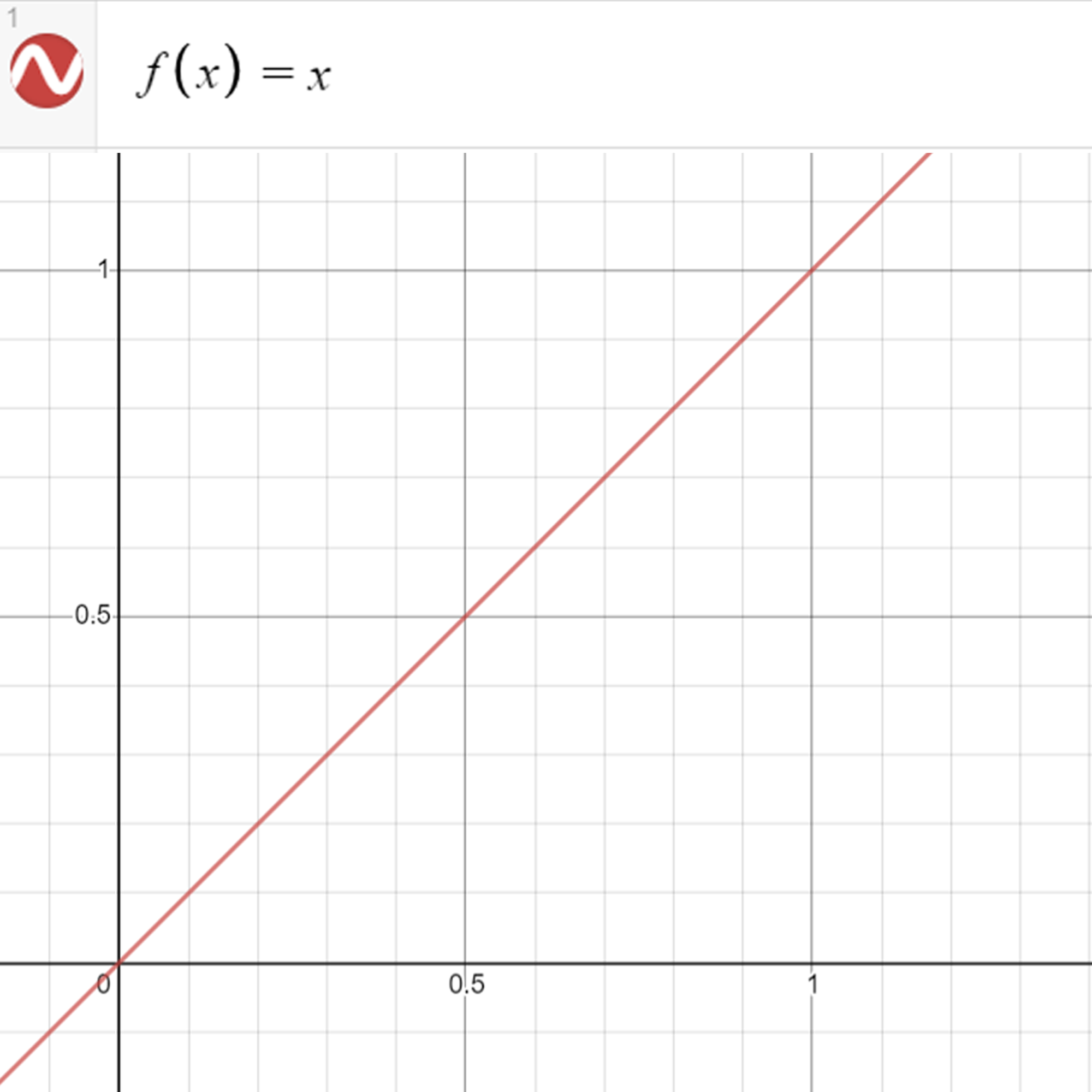

The linear is simple, it is the same percent as X during the whole animation (x=y):


You can see the linear function which stay the same all along.





EaseInOutAnimation:


Arguments

  • Integer: MaxTimeInMS - Duration of the animation in milliseconds.
  • Integer: FrameRate - Animation frame rate in FPSeconds.
  • Function: Function - Call back animation with two or 3 arguments (Percents, X, ExtraData).
  • String: INFO_NAME - Name of the animation (debug purpose).
  • Boolean: IsOtherArguments - Define if callback function need extra data.
  • Class: FUNCTION_NEEDED_INFO - Extra data needed by function.
  • Float: StartAt - Used to force the of the animation at specific % (must be between 0-100) , can be null or not specified.



Description


Like other animation function LinearAnimation animation will calculate x position based on a advancement and sent back the info trough a callback function with arguments (Percent, X). The callback function  just need to place items on there position based on X value.

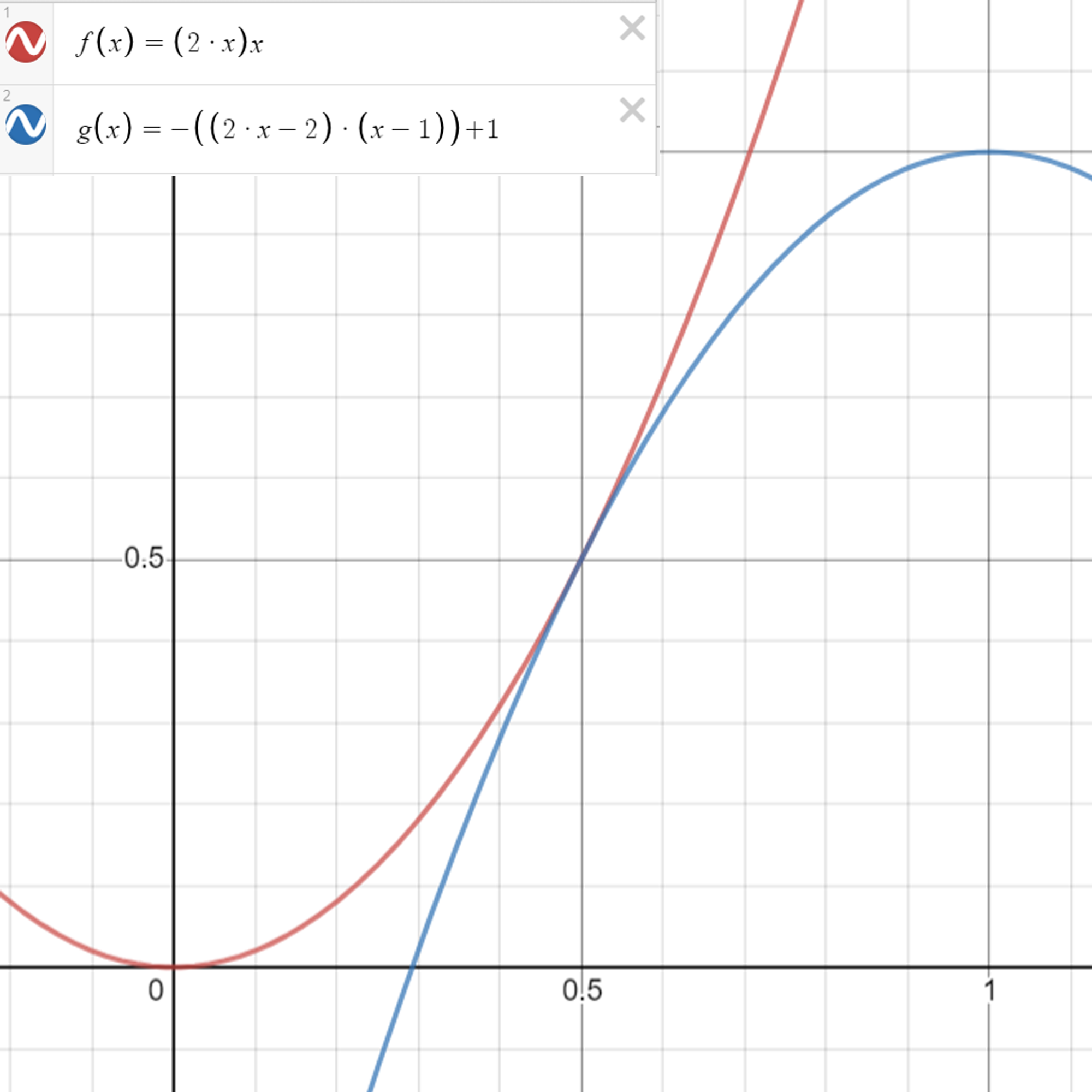

The ease_in_out curve is a bit complex it use two different curves cut at the middle, it first accelerate at the fastest speed then decelerate:






BumpEaseInOutAnimation:


Arguments

  • Integer: MaxTimeInMS - Duration of the animation in milliseconds.
  • Integer: FrameRate - Animation frame rate in FPSeconds.
  • Function: Function - Call back animation with two or 3 arguments (Percents, X, ExtraData).
  • String: INFO_NAME - Name of the animation (debug purpose).
  • Boolean: IsOtherArguments - Define if callback function need extra data.
  • Class: FUNCTION_NEEDED_INFO - Extra data needed by function.
  • Integer: BumpSize - Size of the bump.(CurveDetails in Animate())
  • Float: StartAt - Used to force the of the animation at specific % (must be between 0-100) , can be null or not specified.



Description


Like other animation function LinearAnimation animation will calculate x position based on a advancement and sent back the info trough a callback function with arguments (Percent, X). The callback function  just need to place items on there position based on X value.

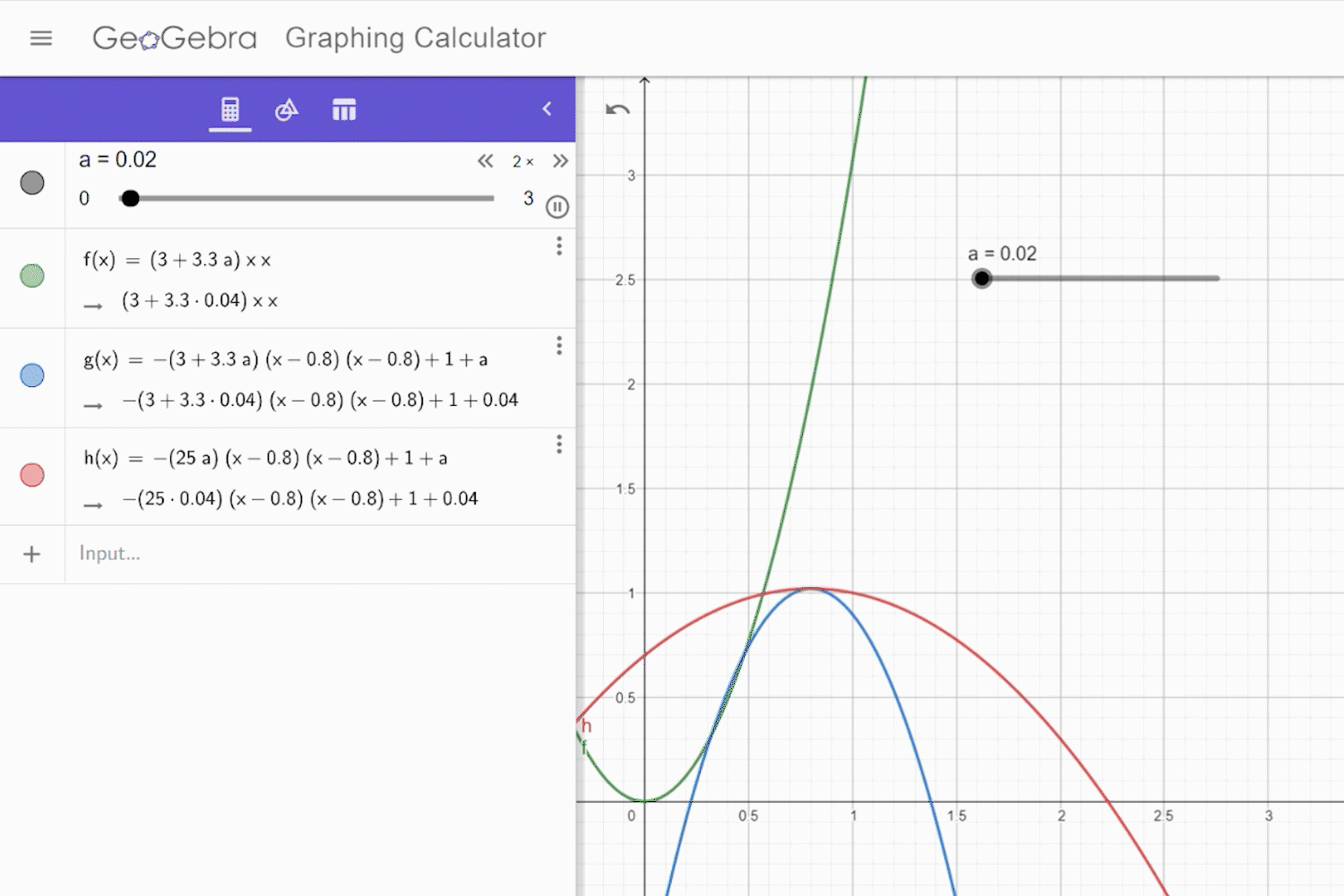

The Bump Ease-In-Out is working in 3 steps:


       1st f(x): This is the accelerating step (the curve is adjusting based on the bump size), it is used between X: 0-0.4.

       2st g(x): This is the decelerating step (the curve is adjusting based on the bump size) but the curve it finishing at g(x) = Bump Size + 1, it is used between X: 0-0.8.

       3st h(x): This is part is transition between h(x) = Bump Size +1 and 1.
